| ELECTRICAL CHARACTERISTICS | ||||
| Maximum Power (Pmax) | 365 W | 370 W | 375 W | 380 W |
| Maximum Power Voltage (Vmp) | 33.85 V | 34.05 V | 34.25 V | 34.45 V |
| Maximum Power Current (Imp) | 10.79 A | 10.87 A | 10.95 A | 11.04 A |
| Open Circuit Voltage (Voc) | 41.05 V | 41.25 V | 41.45 V | 41.65 V |
| Short Circuit Current (Isc) | 11.27 A | 11.35 A | 11.43 A | 11.51 A |
| Module Efficiency (%) | 20.04 | 20.31 | 20.59 | 20.86 |
| Power Tolerance (W) | 0/+5 | |||
| Maximum Fuse Series (A) | 15 | |||
| Maximum System Voltage (IEC) | DC 1000V | |||
| Normal Cell Operating Temperature (ºC) | 45±2 | |||
STC: 1000W/m2 irradiance, 25 ºC module temperature, AM 1.5 spectrum according to EN 60904 -3. Average relative efficiency reduction of 3.3% at 200W/m2 according to EN 60904 -1.
| MECHANICAL SPECIFICATIONS | |
| Dimensions (±2.0 mm) | 1755x1038x35 mm |
| Weight (±0.5 kg) | 19.5 kg |
| Max. static load, frontal (snow and wind) | 5400 Pa |
| Max. static load, rear (wind) | 2400 Pa |
| Max. hail impact (diameter/velocity) | 25 mm / 23 m/s |
| CONSTRUCTION MATER | |
| IALSFront cover (material/thickness)* | Low-iron tempered glass/3.2 mm |
| Cell (quantity / material) | 124 / monocrystalline silicon |
| Frame (material) | Anodized aluminum alloy |
| Junction box (protection degree) | ≥ IP67 |
| Cable (length/cross-sectional area) | 400(300)mm / 4mm2 |
MECHANICAL DIMENSIONS
THERMAL CHARACTERISTICS
MECHANICAL DIMENSIONS
| Temp.Coefficient of Isc | 0.06%/°C |
| Temp. Coefficient of Voc | -0.29%/°C |
| Temp. Coefficient of Pmax | -0.37%/°C |
| Efficiency reduction(200W/m2 25℃) | <5 % |
| Operating temperature | -40~85℃ |
I-V TEMPERATURE
Voltage (V)
| PACKING SPECIFICA TIONSModules/pallet | 30 |
| Pallet/container 40'HQ | 26 |
| Modules/container 40'HQ | 780 |
I-V IRRADIATION
Voltage (V)
PERC represents Passivated Emitter and Rear Cell. It enhances efficiency by facilitating freer electron flow and enhancing the reflectivity at the rear of solar cells, thereby boosting solar panel efficiency.

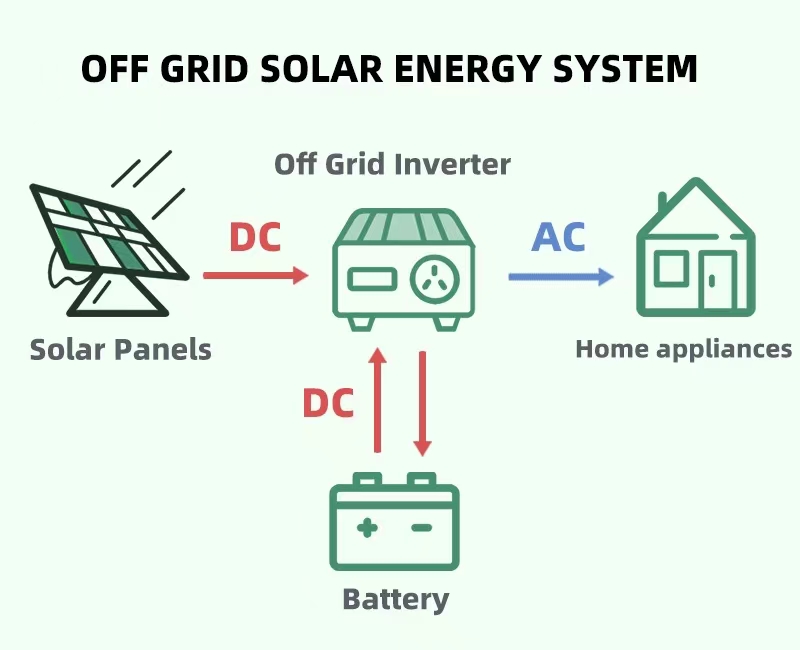

Off-grid solar system:
An off-grid system is designed for regions lacking access to a reliable grid-connected power supply or experiencing unstable grid connections. It consists of essential components such as solar panels, connectors, inverters, batteries, and mounting systems. This self-sufficient system generates electricity from solar energy, stores it in batteries, and utilizes an inverter to convert it into usable AC power, ensuring a reliable and independent source of electricity for locations without access to centralized power grids or facing inconsistent grid reliability.

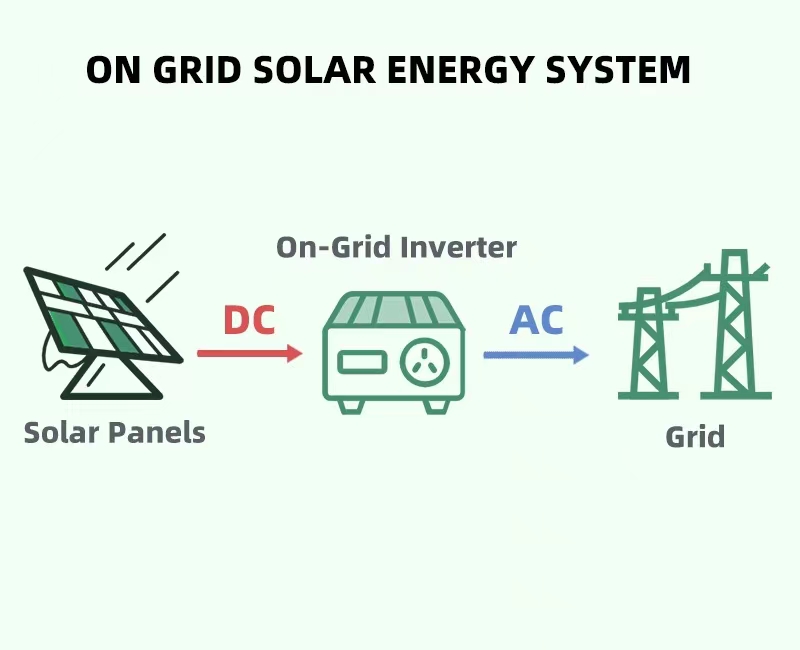

On-grid solar system:
A grid-tied solar power system is connected directly to the existing power grid infrastructure. This setup allows for the seamless integration of solar energy into the grid, enabling the system to feed excess electricity generated by the solar panels back into the public grid. In essence, this system not only powers your home or establishment with solar energy but also allows for the possibility of selling surplus electricity to the grid, contributing to a more sustainable energy ecosystem and potentially offsetting energy costs through net metering or feed-in tariffs.

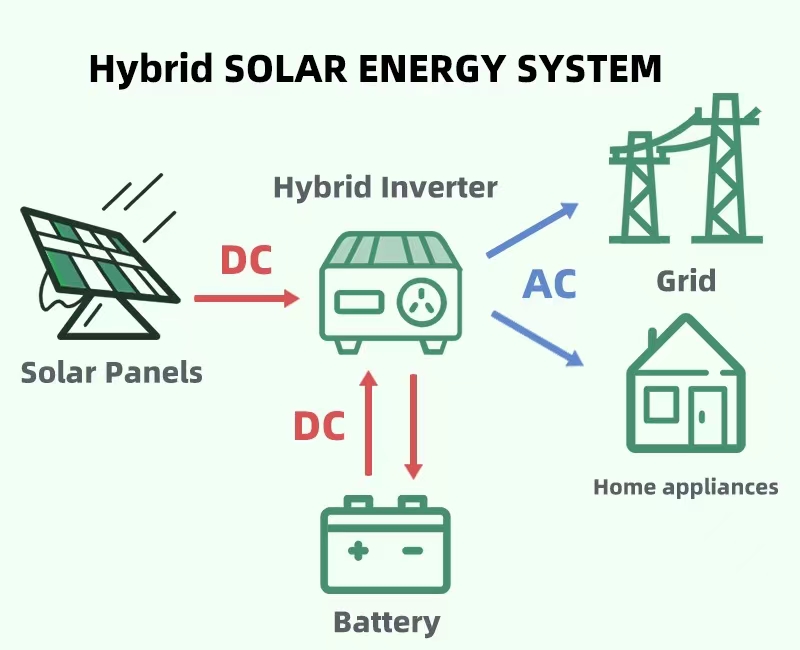

Hybrid solar system: A Hybrid Solar System amalgamates the benefits of both an on-grid and off-grid solar system. It is integrated with the grid, allowing users to either sell surplus solar power to the grid or consume it directly within their premises. In the event of a grid outage, the system seamlessly switches to battery power, ensuring a continuous supply of electricity to meet the household or facility's needs. This system offers the flexibility of grid connectivity for exchanging excess energy while providing backup power autonomy through battery storage, ensuring uninterrupted electricity supply even during grid disruptions.
Our solar panels are mainly designed for energy storage and distributed photovoltaics, with our designers carefully crafting each product.
Advanced automated production equipment greatly improves the production efficiency and product yield of our photovoltaic panels.
Our workers carefully trim and inspect each semi-finished product to ensure that every subsequent product meets the required standards.
Our photovoltaic solar panels feature a high-quality ETFE coating on the surface to ensure durability and waterproofing, greatly extending the product lifespan.
Once the product is completed, it is portable and foldable. We provide a finished product to our customers for remote inspection and demonstration as per their request.
During the pandemic, we were able to guarantee shipping space and delivery time for our US customers thanks to our long-standing friendly cooperation with shipowners and freight forwarding agencies. We arranged shipments with great care and urgency.
